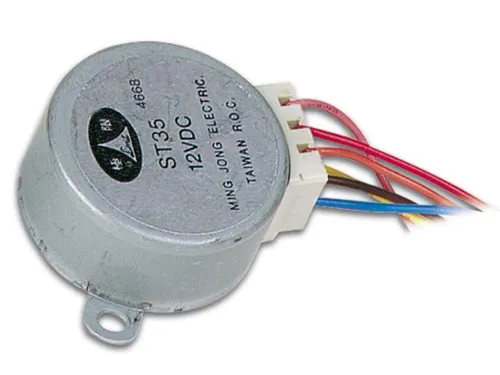

Stappenmotor 12VDC 60mA (Hoek 7.5° / 85 Stappen)

Productcode: PRL-MOTS2

€ 12,37 excl. BTW


€ 44,90 incl. 21% BTW per 3
   Korting bij aankoop meerdere stuks.
Aantal Prijs excl. BTW Prijs incl. BTW
3 € 12,37 per stuk € 14,97 per stuk
6 € 11,74 per stuk € 14,21 per stuk
12 € 11,45 per stuk € 13,85 per stuk
24 € 11,37 per stuk € 13,76 per stuk
33 € 11,24 per stuk € 13,60 per stuk
45 € 10,91 per stuk € 13,20 per stuk
  • Toepassingen:
    • Kantoormachines
    • Automatisch Gestuurde Machines
    • 2-weg Airconditioning
  • Weerstand: 170 Ohm
  • Nom. Spanning: 12 Vdc
  • Stroom: 60 Ma
  • Impedantie: 200 Ohm
  • Fase: 4
  • Hoek Van De Stap / Stap: 7.5° / 48
  • Verminderingsratio: 1/85
  • Detent Torque: 500 Gf.cm
  • Pull-in Torque: 650 Gf.cm
  • Max. Starting Pulse Rate: 350 Pps
  • Max. Slewing Pulse Rate: 800 Pps
  • Temperatuurbereik: 45 °c
  • Ruis: 40 Db
  • Kabel: 450 Mm Awg 1007#26
  • Terminal: Jst Sxh-001t-p0.6
  • Isolatiesterkte: Ac 600 V - Afsluitstroom 1 Sec.: 10 Ma
  • Kleuren:
    • 1: B1: Roze
    • 2: A1: Oranje
    • 3: A2: Geel
    • 4: B2: Blauw
    • 5: Gnd: Rood
    • 6: Gnd2 (for Mots2): Bruin
Specificatie
Productcode PRL-MOTS2
Prijs excl. BTW € 12,37
Prijs incl. BTW € 44,90
Verpakking Stuk
Minimum aantal 3
Merk Velleman
EAN-code 5410329340346
OEM-code MOTS2
Kenmerken
Uitvoering Stappenmotor
Spanning 12v
